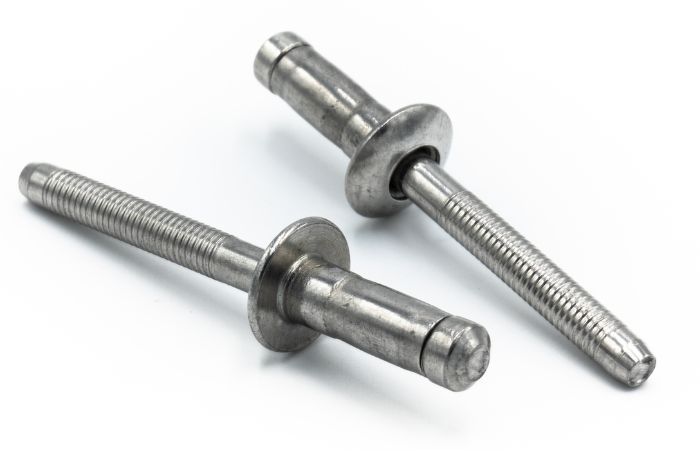

Blind Rivets
Blind rivets are used in the manufacturing and construction industries. Blind rivets are short metal rods with a sharp tip on one end and a smooth head on the other. The sharp end is placed into the joining substance, while the smooth end is forced against the other component to be attached. By pressing the smooth head onto the workpiece, the two pieces are connected.
Aluminium Rivet
Blind rivets consist of two parts: the blind rivet body and, within it, the setting mandrel. The blind rivet body is inserted in a hole in the materials to be joined. The tool is actuated and the jaws of the power-operated or manual riveting tool grip the mandrel of the rivet. The blind rivet is set by pulling the mandrel head into the rivet body, expanding it, and forming a strong, tight, reliable joint. At a predetermined force, the mandrel breaks and falls away.
Material
Aluminium Alloy Grade 19000 H2
Standard Size
Aluminium Rivet Comes in two size generrally: A)Diameter: 3.2mm Length 4.3-15.0mm
B) Diameter: 4.00mm Length 4.9-15.7mm
Physical Properties
- Melting temprature: 580°-640°C
- Combustibility: Non combustible
Supply Units/Packaging
A)Diameter 3.2mm : 1000 Pcs/Box
B) Diameter 4.8mm 500 Pcs/Box
Use - Application
The blind rivet body is inserted in a hole in the materials to be joined.The blind rivet is set by pulling the mandrel head into the rivet body, expanding it, and forming a strong, tight, reliable joint.
Stainless Stell Rivet
Steel blind rivets are revolutionary. We offer steel blind rivets, which are of high strength with load-bearing capabilities, providing strong, vibration-resistant joints.
Material
Stainless Stell Grade 304
Standard Size
Stainless Stell Rivet Size : 3.2 x 8 mm
Supply Units/Packaging
A)Diameter 3.2mm : 1000 Pcs/Box
Use - Application
The blind rivet body is inserted in a hole in the materials to be joined.The blind rivet is set by pulling the mandrel head into the rivet body, expanding it, and forming a strong, tight, reliable joint.
